Hydrocarbon refrigerant charging kit

USA: Ritchie Engineering has announced the availability of its Yellow Jacket products hydrocarbon charging kit.

The kit provides all the necessary tools to charge R290 (propane) and R600a (isobutane) systems safely and effectively. The single valve manifold and small ID hoses allow for effective system pressure measurement while minimising the impact on the system charge.

Acknowledging the many different refrigerant bottle styles in the market, the 61008 hydrocarbon bottle valve works with most self-sealing 7/16in threaded bottle connections. When working with 1in threaded bottle connections, the 61009 hydrocarbon bottle adapter can be used. The 19201 90° quick coupler even provides the ability to attach puncture-style and other right-angle bottle valves for accurate liquid charging.

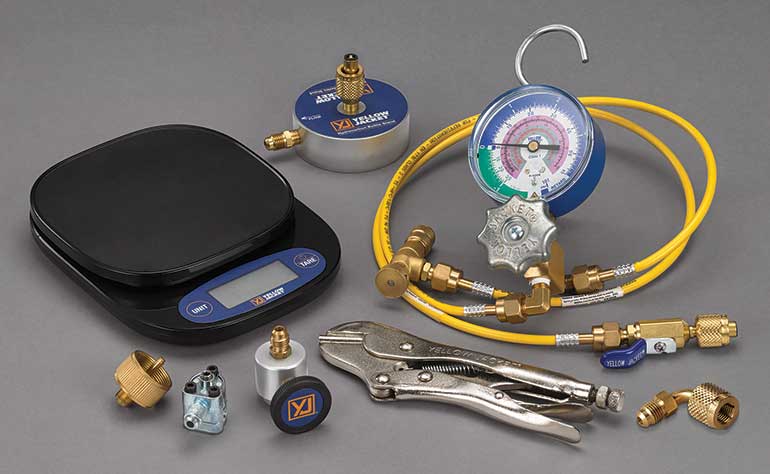

The kit comprises:
Compact charging scale with 0.05g (0.01oz) resolution
Bottle stand providing stability for liquid charging with inverted refrigerant bottles
Single valve manifold with 0.08in (2mm) ID x 24in Reflex hoses
Bottle valve for 7/16in threaded bottles
Bottle adapter for 1in threaded bottles
90° quick-coupler fitting for compatibility with piercing and other right-angle bottle valves
Line tap valve for system connection to 1/4in, 5/16in or 3/8in process lines
Vice grip pinch-off tool for crimping process tube after service is completed
Safety placard provides visual warning of flammability risk during service
Rugged case to protect the equipment when not in use.

Ritchie Engineering
