Bracket allows single-person installation

Mighty-BracketSingle-person installation of split systems has become a reality with the introduction of the RectorSeal Mighty Bracket support tool.

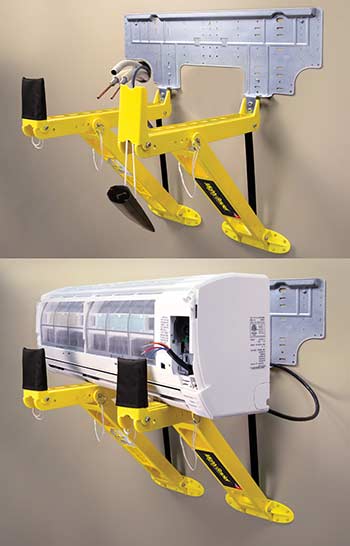

Manufactured by Houston-based RectorSeal, the Mighty Bracket hooks onto both tabs of a mini-split wall mounting plate in less than a minute. It securely holds the mini-split evaporator coil for quick and easy connections of electrical, refrigeration line sets and condensate drain pumps/hoses.

The 20-inch long support arms are roomy enough to allow evaporator coils to be temporarily angled away from the wall at 23 to 45deg for easy back panel access during installation or servicing.

After use, the heavy duty, ABS plastic, reusable bracket needs no disassembly, but simply folds up for storage in a compact 28 x 6-inch black canvas tote bag.

The Mighty Bracket accommodates most mini-split brands and evaporator weights up to 45kg.

Soft gasket material on support feet and support arms protect wall surfaces and evaporator coil encasement finishes from scratches. Flip-up gates at the end of both support arms helps to prevent slip off and damage to the evaporator or flooring below.

In the UK contact:
or www.rectorseal.com for worldwide availability.
