HC heat pumps to 170°C flow temperatures
4th August 2025

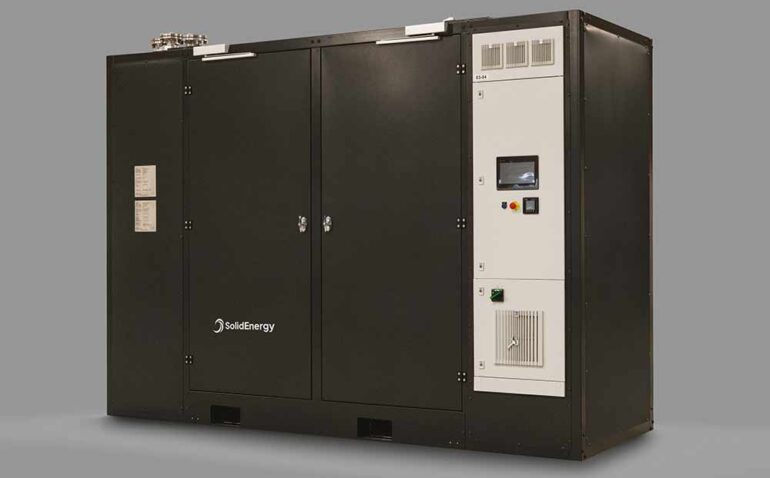

UK: Danish manufacturer Solid Energy has upgraded its range of hydrocarbon-based ultra-high temperature heat pumps with a new line-up capable of reaching flow temperatures of 170°C.
At a launch event hosted by the Danish Embassy in London, the large heat pump specialist highlighted the benefits of a solution aimed at industrial process heat applications in factories, food processing and distilleries. The system can also provide cooling if required.
Operating on a choice of four hydrocarbon refrigerants, depending on application, the high temperature units use the same compressor technology and other components found in Solid Energy heat pumps already delivering low temperature district heating projects.
The refrigerant options are:
Propane: for refrigeration and heat pump operation for heating purposes. Suitable for cooling between -30°C and 25°C, and heat output from 30°C to 65°C;
Isobutane: for heat recovery and heat pump operation for district heating and industrial process heating. Suitable for cooling between -10°C to 40°C, and with heat rejection in the range 50°C to 95°C;
Butane: for heat recovery and heat pump operation for industrial process heating and hot water. Suitable for cooling between 0°C to 50°C, and with heat output from 70°C to 120°C;
Isopentane: for heat recovery and heat pump operation for industrial process steam and hot water. Suitable for cooling between 35°C to 90°C, and with heat output from 90°C to 170°C.
The system modules range in size from 200kW to 1.2MW, and multiple modules can be linked to give larger capacities controlled as one system. The semi-hermetic screw compressors boast a design life of 100,000 hours, requiring minimal maintenance and no oil changes, and are housed in noise-reducing cabinets for ultra-quiet operation.
Designed and built in Denmark, the heat pumps are delivered fully factory tested with minimal installation required, while integrated refrigerant leak detection and ATEX compliant ventilation ensures compliance with UK and European safety directives.
“Every Solid Energy heat pump is designed to the specific needs of individual projects,” explained Ken Kneale, Solid Energy’s business unit director UK & Ireland. “Using our advanced performance calculator, we can select the appropriate compressor size. Depending on the operating temperature we then select the hydrocarbon refrigerants to be used.
“Our design flexibility allows us to implement multiple compressors using the same refrigerant or to select a combination of different refrigerants. This ensures that we can achieve the desired flow temperature while maximising the coefficient of performance.’’
Also introduced at the embassy event was a totally new configuration of the technology, the XL4, aimed at projects requiring high output from limited floor space. Each XL4 module has four compressors, and Solid Energy is currently working to deliver a 70MW project in Denmark.
Solid Energy is working with specialist partner Pure Renewables Commercial in the UK, with the Hull-based business offering technical sales, installation, commissioning and after-sales support.
